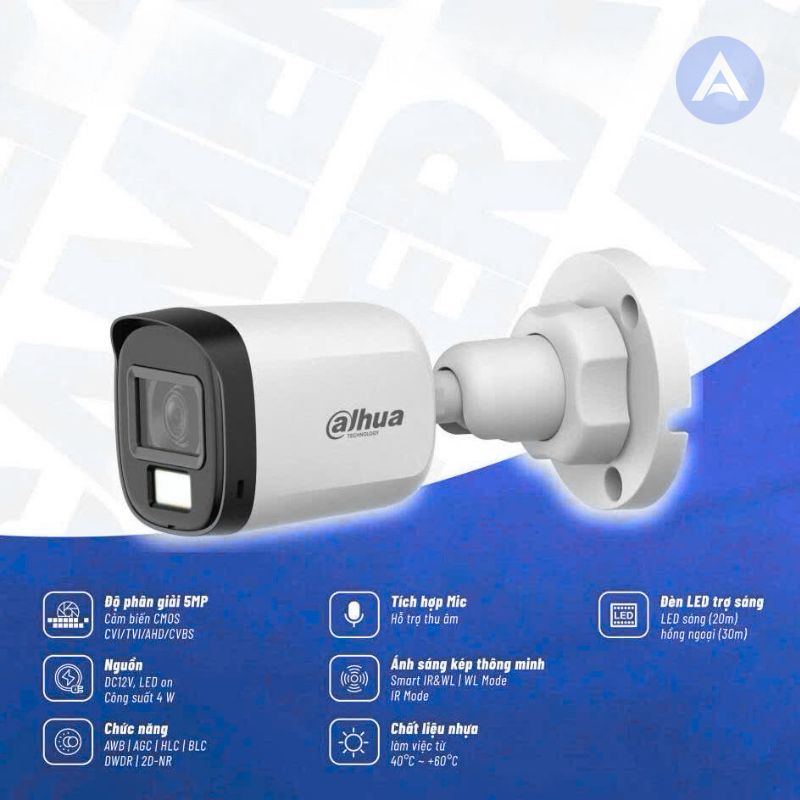

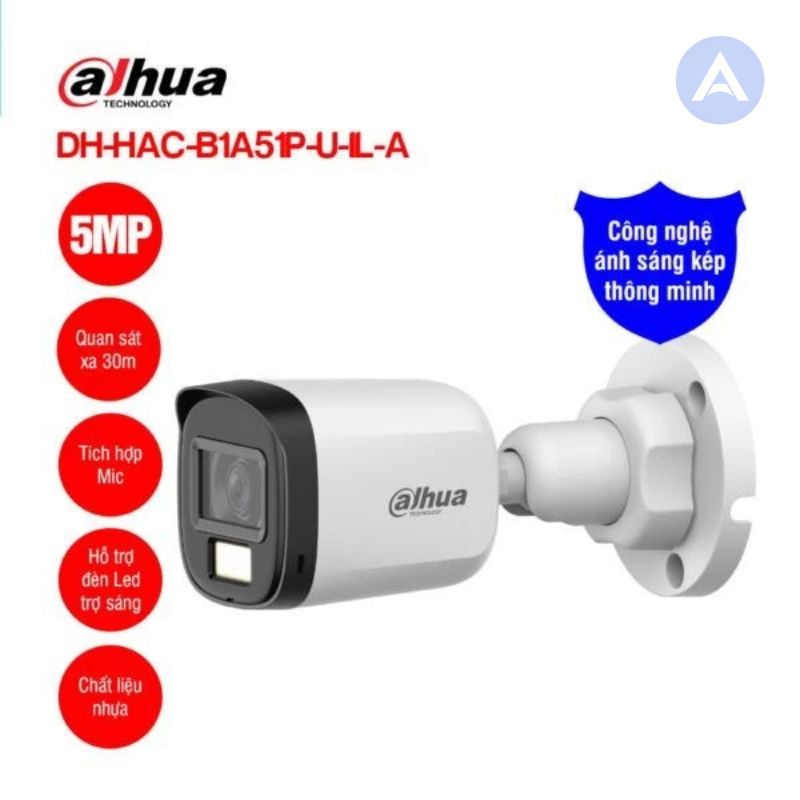

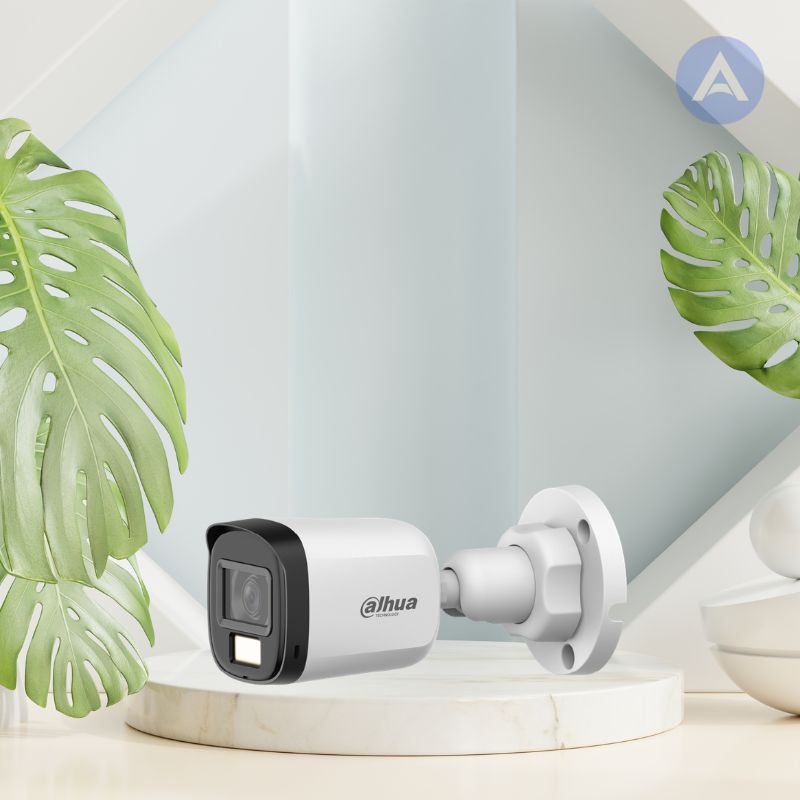

Camera Dahua DH-HAC-B1A51P-U-IL-A 5MP

Liên hệ

Độ phân giải: 5MP(2880 x 1620).
Hỗ trợ chuyển đổi CVI/TVI/AHD/CVBS.
Camera tích hợp công nghệ chiếu sáng kép thông minh (Smart IR&WL, WL Mode, IR Mode).
Độ nhạy sáng: 0.02 lux@F2.0.
Tích hợp đèn LED trợ sáng với khoảng cách 20m.
Tầm quan sát hồng ngoại lên đến 30m.
Ống kính cố định: 3.6mm (tùy chọn 2.8mm/6mm).
Tự động cân bằng trắng (AWB), tự động bù tín hiệu ảnh (AGC), chống chói sáng HLC, bù sáng BLC, chống ngược sáng DWDR, chống nhiễu (2DNR).
Tích hợp sẵn Mic.
Chất liệu: Nhựa.
Môi trường làm việc: -40°C ~ 60°C.
Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

Giá này chỉ áp dụng cho đơn hàng tự lắp đặt

SKU: DH-HAC-B1A51P-U-IL-ADanh mục: Camera Quan Sát, DahuaThẻ: Camera Dahua DH-HAC-B1A51P-U-IL-A 5MP

Mô tả
Đánh giá (0)

Thông số kỹ thuật của camera Dahua DH-HAC-B1A51P-U-IL-A 5MP

Camera
Image Sensor	5MP CMOS
Max. Resolution	2880 (H) × 1620 (V)
Signal System	PAL
Electronic Shutter Speed	PAL: 1/25 s–1/100,000 s;
Min. Illumination	0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	IR: 30 m (98.43 ft) Warm light: 20 m (65.62 ft)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	2 (Warm light);2 (IR light)
Angle Adjustment	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F2.0
Field of View	2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50°
Iris Control	Fixed
Video
Video Frame Rate	CVI: 5M@25 fps; 4M@25 fps; 1080p@25 fps; AHD: 4M@25 fps TVI: 4M@25 fps CVBS: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; DWDR
WDR	DWDR
White Balance	Auto; Area white balance
Gain Control	Auto; Manual
Noise Reduction	2D NR
Illumination Mode	Smart IR&WL; WL Mode; IR Mode
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in Mic
Power
Power Supply	12 VDC ± 30%
Power Consumption	Max 3.3 W (12 VDC, LED on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	<95% (RH), non-condensing
Protection	IP67
Anti-corrosion Level	Basic Protection
Structure
Casing Material	Plastic
Product Dimensions	146.1 mm × 70.0 mm × 69.8 mm
Net Weight	0.15 kg (0.33 lb)
